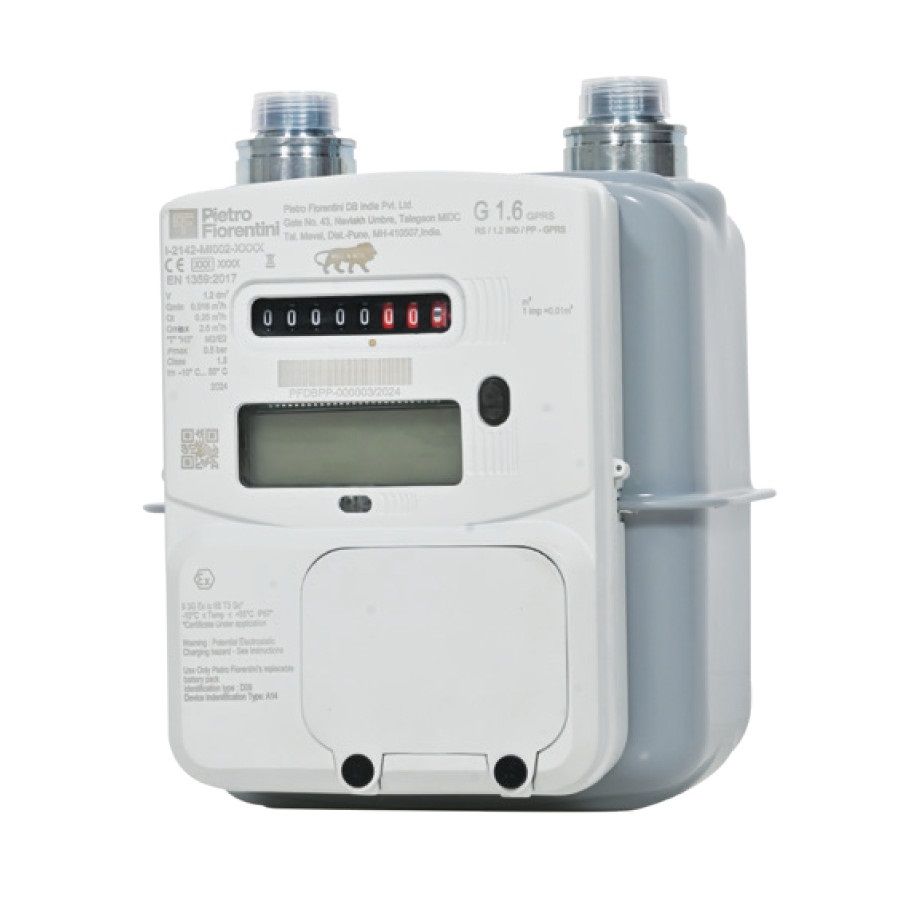

RS / 1.2 IND / PP – NB

RS / 1.2 IND / PP – NB is the outcome of the integration between the traditional Pietro Fiorentini gas meter and the new generation of smart electronic modules.

The mechanical measuring group, already deployed and tested on millions of residential customers, is well known for its proven accuracy and high reliability over time.

This device is used in residential environments, for dry gas volume measurement.

• One meter – PrePaid ⇄ PostPaid
• Body: cold rolled cold annealed / zinc-coated pressed steel plate
• Paint: polyester powder paint cooked in oven
• Diaphragm: synthetic
• Integrated shut off valve
• Accuracy class: 1.5
• Working temperature: from -25 °C to +55 °C
• Connections: 3/4” NPT, BSPT, BS 746 and BSP, Others connections on Request
• Minimum flow rate: G1.6 0.016 m³/h, G2.5 0.025 m³/h, G4 0.04 m³/h
• Maximum flow rate: G1.6 2.5 m³/h, G2.5 4 m³/h, G4 6 m³/h
• Communication interface (Primary): NB-IoT with optimized network registrations
